Implant mate M1

Implant mate M1

Implant mate M2

Implant mate M2

Surgic Mate V1

Surgic Mate V1

Handpiece

Handpiece

Motor

Motor
Implant mate M2

Implant mate M2

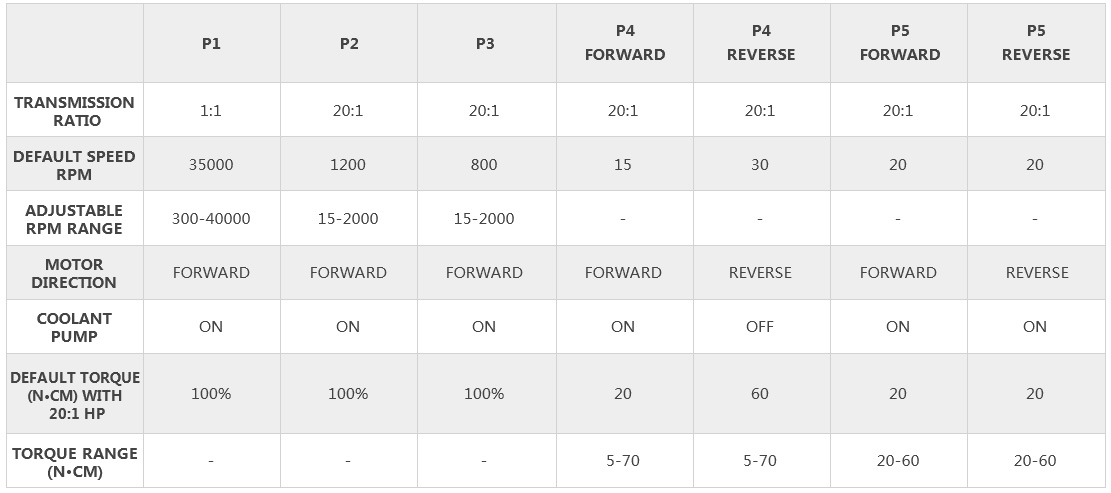

When the thread cutter function [P5] is activated, the speed in both forward and reverse operation modes is 20rpm and can no longer be changed. When the foot control is pressed, the thread rotates inwards until the torque is reached When the set torque is reached, the device automatically switches to reverse operation Disengaging and then re-engaging the foot control will switch the device back to forward operation
One button operation, ease of use, super safe and convenient
Freely programming, satisfy the needs of a variety of users
Unique high definition LCD screen with no refection, satisfy for 360°glance
Coolant volume setting at 100% reaches at minimum 90ml/min, it starts simultaneously with handpiece to ensure the sufficient water cooling for the handpiece

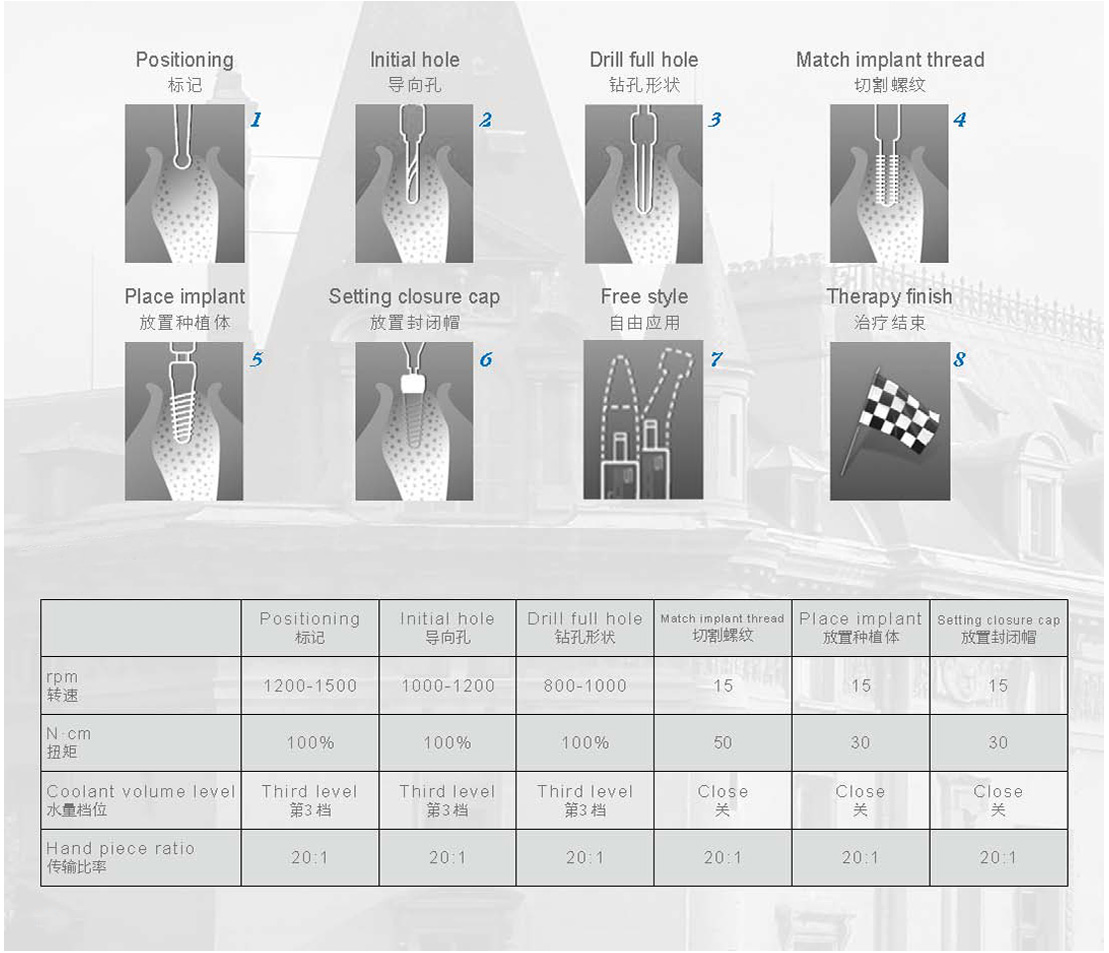

Product features and clinical

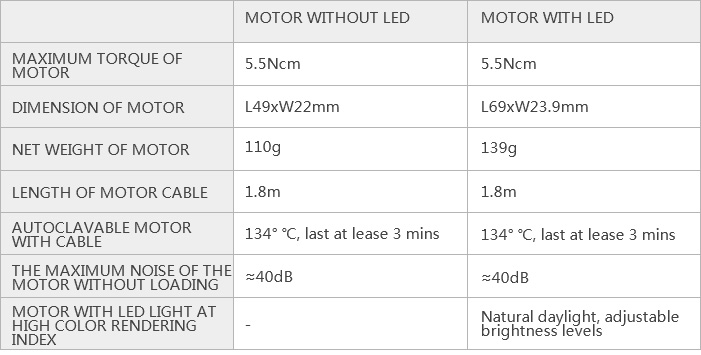

Motor

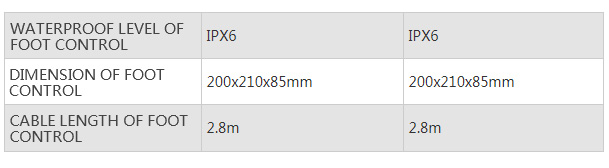

Foot control

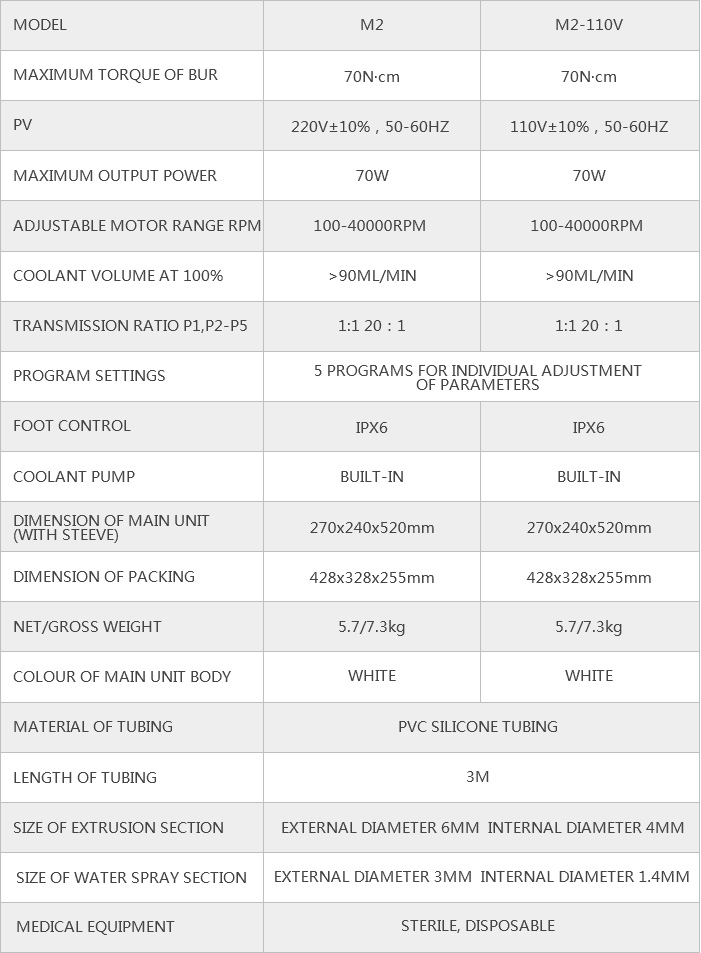

Machine
